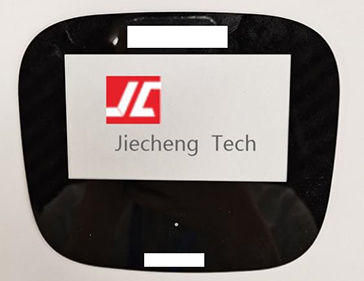

4.3 inch CTP for Car Rearview Mirror
Has a two-layer structure,4.3 inch G+G capacitive touch screen,comprised of a cover, sensor, driver IC and FPC.Advanced technology, long service life and stable performance.Its humilities can be in the 80 to 90 percent range.Application:Including Web Phones, Test & Measurement Equipments, Voting Machines, Entertainment Applications and Tablet PC.All materials and components must comply with RoHS standard.
| Model | JC-GG043A0 |
| Type | G + G |
| Thickness | 2.045 ± 0.1mm |
| Operating Voltage | 2.8 - 3.6V |
| Working current | 8mA - 10mA |
| Peripheral size | 138.42 * 116.39mm |
| Viewing area size | 96.70 * 55.50mm |
| Operating area size | 95.70 * 54.50mm |
| Sensitivity | 100 ± 30₵ adjustable 11 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥85% |
| Haze | ≤3% |
| Surface treatment | |
| Operating temperature | -20℃~ +70℃, ≤90%RH |
| Storage temperature | -30℃~ +80℃, ≤90%RH |
| Surface hardness | ≥6H |
| Finished static test | Air≥10KV contact≥6KV |
| Applications | Industrial Control |
