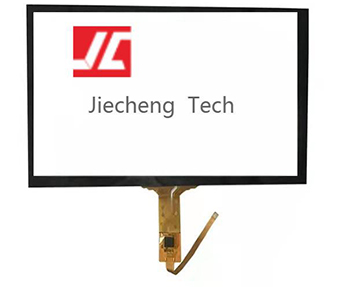

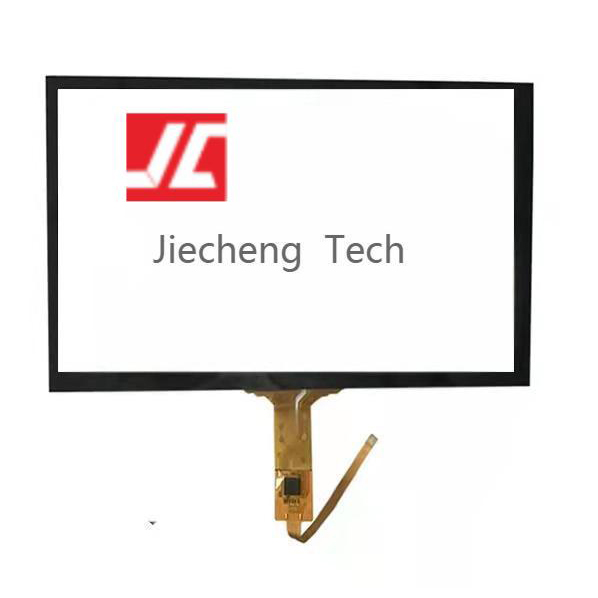

6.0 inch CTP for Car Entertainment
GG capacitive touch screen,consists of a cover, sensor, driver IC and FPC,driven by a ILI2302M capacitive touch driver IC, Which utilizes an I2C interface, and is capacitive of 5-10 points touch.It has the advantages of high light transmittance, fast response speed and long life. Application: for this Category include Portable PC, Laser Printer.All materials and components must be RoHS compliance.
| Model | JC-GG-062A0 |
| Type | G + G |
| Thickness | 1.73 ± 0.1mm |
| Operating Voltage | 2.8 - 3.3V |
| Working current | 8mA - 14.5mA |
| Peripheral size | 171.2 x 88.0 mm |
| Viewing area size | 137.52 x 77.232mm |
| Operating area size | 140.7 x 80.4mm |
| Sensitivity | 100 ± 30₵ adjustable 8 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥85% |
| Haze | |
| Surface treatment | Anti - fingerprint, anti - oil stain |
| Operating temperature | -20℃~+70℃, ≤90%RH |
| Storage temperature | -30℃~+80℃, ≤90%RH |
| Surface hardness | ≥6H |
| Finished static test | Air≥10KV contact≥6KV |
| Applications | cell phone |
