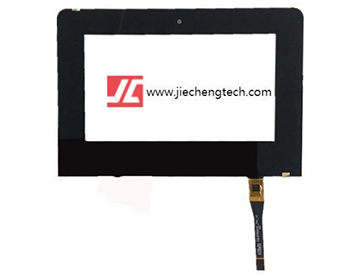

7.0 inch CTP for Android Tablet
JC-GF070A0 7 inch,GF capacitive touch screen,is comprised of a cover, sensor, driver IC and FPC.Wide storage/operation temperature range and excellent light transmittance performance.Its storage/operation temperature range is from -30℃~to 80℃ and its light transmittance is more than 85 percent.Its humilities can be in the 20 to 90 percent range.Product application areas: Entertainment Applications and Tablet PC,smart home field, medical device display field, etc.
| Item No. | JC-GF070A0 |
| Type | G + F |
| Thickness | 1.8mm adjustable |
| Operating Voltage | 3.3ⅴ adjustable |
| Operating Current | 2.5mA - 10mA Depends on IC |
| External Dimension | 199.54 X 136.7mm |
| View Area Dimension | 88.14 * 154.94mm |
| Active Area Dimension | 87.14 * 153.94mm |
| Sensitivity | 100 ± 30￠ 6 contact rod |
| Interface | I2C，USB |
| Connection of TSP and IC | COF or COB |
| Transparency | ≥80% depends on the quantity of layers |
| Haze | ≤2.5% depends on the quantity of layers |
| Surface coating | Anti - Fingerprint, Anti-Smeary, Anti - Reflection etc. |
| Storage Temperature | -15℃~40℃ , ＜90%RH; 40℃~70℃, ＜60%RH |
| Surface Hardness | -20℃~40℃ , ＜90%RH ; 40℃~70℃, ＜60%RH |
| Surface Hardness | ≥5H |
| TSP ESD Level | ≧100 000 000 Times |
| Application | MID, Tablet PC |
