10.1 inch CTP for Alipay Payment

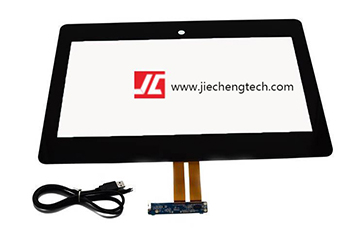

17.3 inch,GG capacitive touch screen,has a two-layer structure:Cover Glass+ITO Glass.High surface hardness and short response times.Its surface surface is more than 3H and its response time is less than 10ms.You can see how superior the design is in sensitivity, accuracy and friendly operation. Application: for this Category include Portable PC, Laser Printer.All materials and components must be RoHS compliance.
| Item | Specification |
| Screen size | 17.3 inch |
| Outline Dimension | 430.0 * 310.0 mm |
| Module View Area | 381.89 * 214.81 mm |
| Active Area | 383.49 * 216.41 mm |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG / AF / AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB / IIC / RS232 |
| Operating System | XP win7, 8 Android Linux |
| System Driver | No need (USB plug and play) |
| Touch Points | 1-10 |
