14.1 inch CTP for Laptop

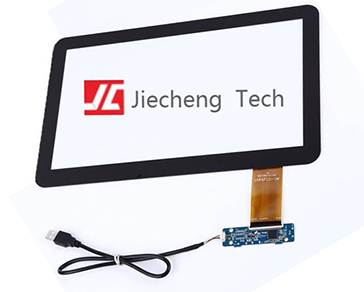

14.1 inch,GFF capacitive touch screen,is comprised of a cover, sensor, driver IC and FPC.Wide storage/operation temperature range and excellent light transmittance performance.Its storage/operation temperature range is from -30℃~to 80℃ and its light transmittance is more than 85 percent.Its humilities can be in the 20 to 90 percent range.Application: for this Category include Portable PC, Laser Printer.All materials and components must be RoHS compliance.
| Item | Specification |
| Screen size | 14.1 inch |
| Outline Dimension: | 351.4 * 219.8mm |
| Module View Area | 311.4 * 176.0mm |
| Active Area | 313.4 * 178.0mm |
| Structures | Cover Glass + ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG / AF / AR |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 80℃ |
| Supply Voltage | 3.3V ~ 5V |
| Transmittance | 86% Min |
| Interface Mode | USB / IIC / RS232 |
| Operating System | XP win7, 8 Android Linux |
| System Driver | No need (USB plug and play) |
| Touch Points | 1-10 |
