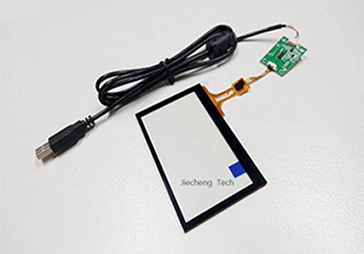

4.3 inch CTP for Serial Port Control
4.3 inch,GFF capacitive touch screen, has high precision and good durable ability.You can see how superior the design is in sensitivity, accuracy and friendly operation. It is widely applied to Face recognition payment POS ,Intelligent POS, Phone waterdrop.All products strictly according to the EU ROHS directive requirements.
| Model Number | 4.3" |
| Size | 4.3 inch |
| Operating Temperature | -20℃ ~ 70℃, ≤85% R |
| Outline Dimension | 105.50(W) x 53.86(H) x 1.83(D) mm |
| Viewing Area | 95.04(W) x 54.86(H) mm |
| Support Systems | Windows / Android / Linux etc. |
| Light Transmittance | ≥85% |
| Surface Hardness | ≥6H |
| Interface Type | "IIC TO USB" (Plug and Play) |
| Controller IC | Cypress |
| Touch Points | 10 Points |
| Power Supply Voltage | 2.8V ~ 3.3V |
| Structure | Glass + Flim + Flim |
