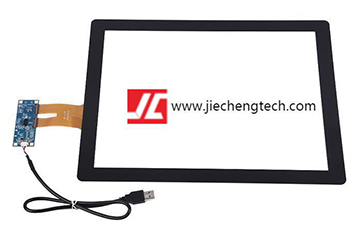

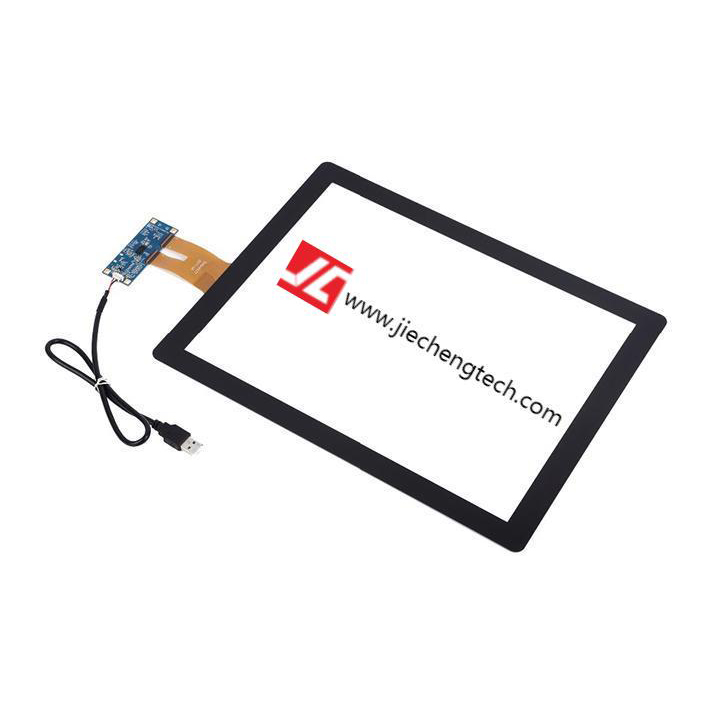

15 inch CTP for POS
15.0inch,GG capacitive touch screen,has a two-layer structure:Cover Glass+ITO Glass.The product has the advantages of high light transmittance, fast response speed and long life,widely used in Web Phones, Test & Measurement Equipments, Voting Machines, Entertainment Applications and Tablet PC.All products meet latest Restriction of Hazardous Substances (RoHS) Directive.
| Item | Specification |
| Screen size | 15.0 inch |
| Outline Dimensio | 361.42 * 287.42mm |
| Active Area | 306.0 * 230.0mm |
| Module View Area | 304.5 * 228.5mm |
| Structures | Cover Glass + ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG / AF / AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 80℃ |
| Supply Voltage | 3.3V ~ 5V |
| Transmittance | 86% Min |
| Interface Mode | USB / IIC / RS232 |
| Operating System | XP win7, 8 Android Linux |
| System Driver | No need (USB plug and play) |
| Touch Points | 1-10 |
