14.1 inch CTP for Mirror Device

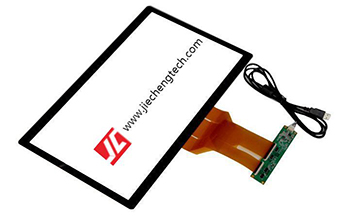

19.5 inch,GG capacitive touch screen,has a two-layer structure:Cover Glass+ITO Glass.The merits of the product are its excellent heat-proof and good transparency.Its light transmittance is more than 85 percent.It is widely applied to Smart lock,Smart robot,Smart switch,Face recognition payment POS ,Intelligent POS, Phone waterdrop.All products strictly according to the EU ROHS directive requirements.
| Struture | CTP (Glass+Glass) JC-GG195A0 |
| Sensor OD | 450.5 x 259.76 mm |
| Lens OD | 473.5 x 281.26 mm |
| Touch solution | COB (Chip on the board) |
| Touch controller | ILITEK |
| Operating systems | Win 7, win8, wince, andriod, linux |
| Interface of CTP | I2C / USB / RS232 |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
