9.7 inch CTP for Student Tablet

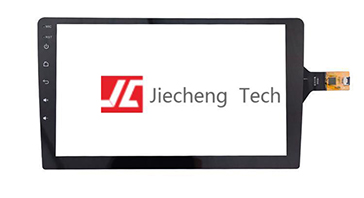

JC-GG090A0capacitive touch screen,consists of a cover, sensor, driver IC and FPC.High surface hardness and short response times.Its surface surface is more than 3H and its response time is less than 10ms. Product application areas: smart home field, medical device display field, etc. All products meet latest Restriction of Hazardous Substances (RoHS) Directive.
| JC-GG090A0 | |
| Diagonal Size | 9 inch |
| Outline Dimension | 229.0W x 130.0H mm |
| View Area | 197.6W x 113.1H mm |
| Active Area | 197.6W x 113.1H mm |
| Wire Number | 6 |
| USB Controller Card | Optional / Standard included |
| Input Method | Finger or gloved hand (rubber, cloth or leather) |
| Touch Times | More than 1 million touches |
| Touch Activation Force | 20-80g |
| Surface Durability | Meet pencil hardness 3H (per ASTM D3363) |
| PERFORMANCE | |
| Linearity Error | <1.5% |
| Response Speed | <10ms |
| OPTICAL | |
| Light Transmission | 80% (Meet ASTM D1003 |
| ENVIROMENTAL | |
| Temperature | Operating Range: -10℃ ~60℃ |
| Storage Range: -10℃ ~60℃ | |
| Relative Humidity | Operating Range: 0%~90% RH (no dew falls) |
| Storage Range: 0%~95% RH (no dew falls) | |
| Altitude | Up to 3,000m |
| ELECTRICAL | |
| Operation Voltage | Typical + DC 5V |
| Power Supply | USB or RS232 |
| Interface | Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
| Serial RS-232 | |
| Current | 5mA - 25mA |
| Resistance | 300 |
| Agency Approvals | CE, FCC, RoHS |
| Operation System | Linux / Dos / Windows ME 95 98 NT4.0 XP 2000 Win7 Win10 / MacOS |
