8.0 inch CTP for POS

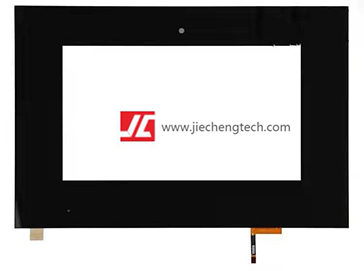

JC-GF080A0,8 inch,GFF capacitive touch screen,is comprised of a cover, sensor, driver IC and FPC.The merits of the product are its excellent heat-proof and good transparency. Its light transmittance is more than 80 percent.It is widely applied to Face recognition payment POS ,Intelligent POS, Phone waterdrop.All materials and components must be RoHS compliance.
| Item No. | JC-GF080A0 |
| Type | G + F + F |
| Thickness | 1.6mm adjustable |
| Operating Voltage | 3.3ⅴ adjustable |
| Operating Current | 2.5mA - 10mA Depends on IC |
| External Dimension | 248 * 165MM |
| View Area Dimension | 177.64 ± 0.15 * 100.36 ± 0.15MM |
| Active Area Dimension | 188.64 ± 0.2 * 111.36 ± 0.2 * 0.5 ± 0.05MM |
| Sensitivity | 100 ± 30￠ 6 contact rod |
| Interface | I2C，USB |
| Connection of TSP and IC | COF or COB |
| Transparency | ≥80% depends on the quantity of layers |
| Haze | ≤2.5% depends on the quantity of layers |
| Surface coating | Anti-Fingerprint、Anti-Smeary、Anti-Reflection etc. |
| Storage Temperature | -15℃~40℃ , ＜90%RH; 40℃~70℃, ＜60%RH |
| Surface Hardness | -20℃~40℃ , ＜90%RH ; 40℃~70℃, ＜60%RH |
| Surface Hardness | ≥5H |
| TSP ESD Level | ≧100 000 000 Times |
| Application | MID, Tablet PC |
