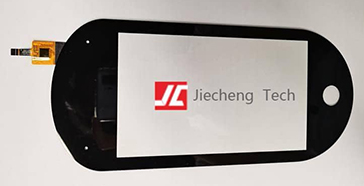

7.0 inch CTP for Face Recognition
The product is a 6 inch GFF capacitive touch screen. It is composed of a cover, sensor, driver IC and FPC. The Capacitive Touch is driven by a FT6436 capacitive touch driver IC, which utilizes an I2C interface, and is capacitive of 5-10 points touch. You can see how superior the design is in sensitivity, accuracy and friendly operation.
| Model | JC-GFF070A1 |
| Type | G + F + F |
| Thickness | 1.43 ± 0.1mm |
| Operating Voltage | 2.7~3.6V |
| Working current | |
| Peripheral size | 116 * 209.6mm |
| Viewing area size | 90.4 * 154.6mm |
| Operating area size | 89.4 * 153.6mm |
| Sensitivity | 100 ± 30₵ adjustable 7 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥83% |
| Haze | |
| Surface treatment | Anti - fingerprint, anti-oil stain |
| Operating temperature | -20℃~ +70℃, ≤90%RH |
| Storage temperature | -30℃~ +80℃, ≤90%RH |
| Surface hardness | 6H |
| Finished static test | Air≥10KV, contact≥6KV |
| Applications | flat |
