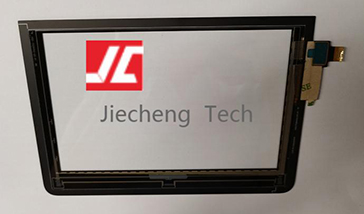

7.0 inch CTP for Cosmetic Instrument
Capacitive touch screen,consists of a cover, sensor, driver IC and FPC.The merits of the product are its excellent heat-proof and good transparency.Application: Including smart watch, handheld POS, gaming consoles, airphone, refrigerator, digital camera, projector, music player MP3, digital photo viewer, Card machine, panoramic camera.All materials and components must comply with RoHS standard.
| Model | JC-GG070A0 |
| Type | G + G |
| Thickness | 1.8mm |
| Operating Voltage | 2.8 - 3.3V |
| Working current | 8 - 14.5mA |
| Peripheral size | 179.00 * 123.00mm |
| Viewing area size | 151.32 * 94.80mm |
| Operating area size | 150.32 * 93.80mm |
| Sensitivity | 100 ± 30₵ adjustable 8 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥85% |
| Haze | |
| Surface treatment | |
| Operating temperature | -20℃~ +70℃, ≤90%RH |
| Storage temperature | -30℃~ +80℃, ≤90%RH |
| Surface hardness | >6H |
| Finished static test | Air≥10KV, contact≥6KV |
| Applications | flat |
