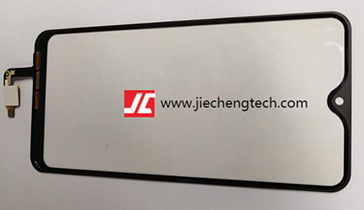

5.5 inch CTP for UAV Monitoring
JC-GG050A5,5.5 inch,GG capacitive touch screen,has a two-layer structure:Cover Glass+ITO Glass.The merits of the product are its excellent heat-proof and good transparency. Its light transmittance is more than 80 percent.It is widely applied to Smart lock,Smart robot,Smart switch.All products meet latest Restriction of Hazardous Substances (RoHS) Directive.
| Model | JC-GG050A5 |
| Type | G + G |
| Thickness | 1.33 ± 0.1mm |
| Operating Voltage | 2.8 - 3.3V |
| Working current | 9mA |
| Peripheral size | 64.16 * 135.96mm |
| Viewing area size | 59.37 * 124.01mm |
| Operating area size | 58.37 * 123.01mm |
| Sensitivity | 100 ± 30₵ adjustable 7 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥85% |
| Haze | |
| Surface treatment | |
| Operating temperature | -20℃~ +70℃, 20-90%RH |
| Storage temperature | -30℃~ +80℃, 20-90%RH |
| Surface hardness | 6H |
| Finished static test | Air≥10KV contact≥6KV |
| Applications | cell phone |
