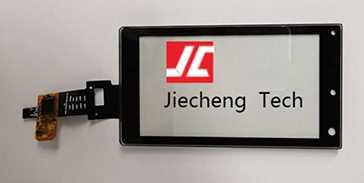

5.0 inch CTP for Water Dispenser
G+G capacitive touch screen,is composed of a cover, sensor, driver IC and FPC,driven by a ILI2302M capacitive touch driver IC, Which utilizes an I2C interface, and is capacitive of 5-10 points touch.It has the advantages of high-temperature storage property and low-temperature storage property,widely used in intelligent robots, mobile phones, greeting cards.
| Model | JC-GG050A0 |
| Type | G + G |
| Thickness | 6.3 ± 0.5mm |
| Operating Voltage | 1.8 - 3.3V |
| Working current | 8～10mA |
| Peripheral size | 74.2 * 135.5mm |
| Viewing area size | 62.5 * 111mm |
| Operating area size | 61.5 * 110mm |
| Sensitivity | 100 ± 30₵ adjustable 7 conductive rod |
| Interface | Connector |
| TSP and IC connection method | COF |
| Transmittance | ≥80% |
| Haze | |
| Surface treatment | |
| Operating temperature | -20℃～70℃, ≤90%RH |
| Storage temperature | -30℃～80℃, ≤90%RH |
| Surface hardness | ≥7H |
| Finished static test | Air≥10KV, contact≥6KV |
| Applications | Industrial Control |
