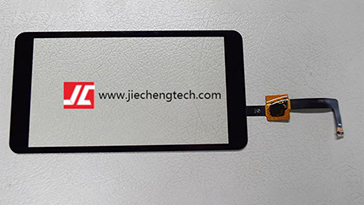

5.0 inch CTP for Coating Machine
JC-GF050A0 5 inch,GF capacitive touch screen,is composed of a cover, sensor, driver IC and FPC,driven by a ILI2302M capacitive touch driver IC, Which utilizes an I2C interface, and is capacitive of 5-10 points touch.High surface hardness and short response times.Its surface surface is more than 3H and its response time is less than 10ms.These types of touch screen are now widely used in automotive TV, industrial display, smart home, medical equipment and other fields.All materials and components must comply with RoHS standard.
| Model Number | JC-GF050A0 |
| Size | 5.0 inch |
| Operating Environment | -20℃ ~ 70℃, ≤85% RH |
| Power Supply Voltage | 2.8V ~ 3.3V |
| Outline Dimension | 73.92(W) X 142.88(H) X 1.325(D)mm |
| Viewing Area | 62.70(W) X 111.00(H) mm |
| Surface Hardness | ≥6H |
| Interface Type | IIC |
| Structure | Glass + Film |
| Controller IC | FT6336 |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Support Systems | Windows / Android / Linux etc. |
