3.5 inch CTP for Printer General Specification

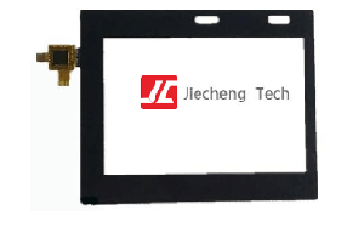

3.5" is a capacitive touch screen,which is composed of a cover, sensor, driver IC and FPC,driven by a ILI2302M capacitive touch driver IC, Which utilizes an I2C interface, and is capacitive of 5-10 points touch.High surface hardness and short response times.Its surface surface is more than 3H and its response time is less than 10ms.It is widely applied to Smart lock,Smart robot,Smart switch.
| Item No. | 3.5" |
| Type | G + F + F |
| Thickness | 1.22mm adjustable |
| Operating Voltage | 3.3ⅴ adjustable |
| Operating Current | 2.5mA-10mA Depends on IC |
| External Dimension | 70.7 ± 0.2mm * 87 ± 0.2mm |
| View Area Dimension | 50.56 * 81.46mm |
| Active Area Dimension | 49.96 * 74.44mm |
| Sensitivity | 100 ± 30￠ 6 contact rod |
| Interface | I2C，USB |
| Connection of TSP and IC | COF or COB |
| Transparency | ≥80% depends on the quantity of layers |
| Haze | ≤2.5% depends on the quantity of layers |
| Surface coating | Anti-Fingerprint, Anti-Smeary, Anti-Reflection etc. |
| Storage Temperature | -15℃~40℃ ，＜90%RH; 40℃~70℃，＜60%RH |
| Surface Hardness | -20℃~40℃ ，＜90%RH; 40℃~70℃，＜60%RH |
| Surface Hardness | ≥5H |
| TSP ESD Level | ≧100 000 000 Times |
| Application | Cellphone |
