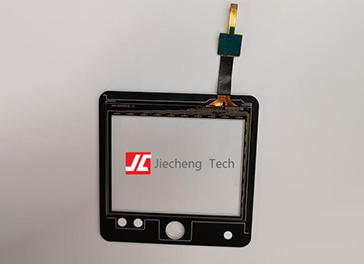

3.5 inch CTP for Laser Cutting Machine
Has a two-layer structure,made of a cover, sensor, driver IC and FPC.The Capacitive Touch is driven by a ILI2302M capacitive touch driver IC, Which utilizes an I2C interface, and is capacitive of 5-10 points touch.The product provides high sensibility and accuracy,widely used in refrigerator, digital camera, projector, music player MP3, digital photo viewer, Card machine, panoramic camera.All materials and components must be RoHS compliance.
| Model | JC-GG035A0 |
| Type | G + G |
| Thickness | 2.65 ± 0.15mm |
| Operating Voltage | 2.8 - 3.3V |
| Working current | 8mA - 14.5mA |
| Peripheral size | 85.69 * 85.69mm |
| Viewing area size | 70.68 * 53.16mm |
| Operating area size | 69.68 * 52.16mm |
| Sensitivity | 100 ± 30₵ adjustable 9 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥85% |
| Haze | |
| Surface treatment | |
| Operating temperature | -20℃~ +70℃, ≤90%RH |
| Storage temperature | -30℃~ +80℃, ≤90%RH |
| Surface hardness | 7H |
| Finished static test | Air≥10KV contact≥6KV |
| Applications | Industrial Control |
