12.1 inch CTP for Android Tablet

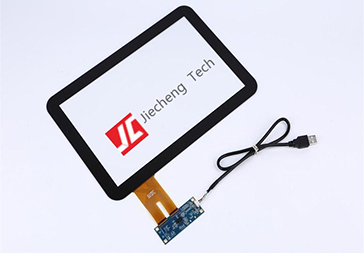

12.1 inch,GG capacitive touch screen,is comprised of a cover, sensor, driver IC and FPC.High surface hardness and short response times.Its surface surface is more than 3H and its response time is less than 10ms.It is widely applied to Smart lock,Smart robot,Smart switch,Face recognition payment POS ,Intelligent POS, Phone waterdrop.All products strictly according to the EU ROHS directive requirements.
| Screen Diagonal | 12.1 Inch |
| Ratio | 16 : 10 |
| Structures | G + G |
| Outline Dimension | 301.9 * 203.9 mm |
| Module View Area | 262.2 * 164.2mm |
| Active Area | 264.2 * 166.2mm |
| Cover Lens | 1.1mm |
| Interface Mode | USB / IIC / RS232 |
| Operating System | XP win7 8 Android Linux |
| Touch Points | 1-10 |
