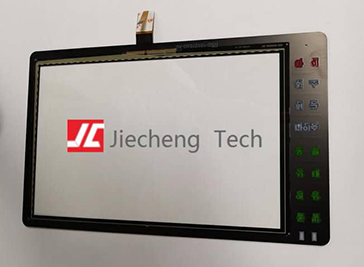

10.1 inch CTP for Robot
10.1 inch,GFF capacitive touch screen,composed of a cover, sensor, driver IC and FPC, has high precision and good durable ability.Application: for this Category include Portable PC, Laser Printer.It launched touch control board to meet latest Restriction of Hazardous Substances (RoHS) Directive.
| Model | JC-GFF101A0 |
| Type | G + F + F |
| Thickness | 1.5 ± 0.15mm |
| Operating Voltage | 2.8-3.3V |
| Working current | 11mA |
| Peripheral size | 265.36 * 161.60mm |
| Viewing area size | 218.06 * 136.70mm |
| Operating area size | 217.06 * 135.70mm |
| Sensitivity | 100 ± 30₵ adjustable 8 conductive rod |
| Interface | I2C |
| TSP and IC connection method | COF |
| Transmittance | ≥83% |
| Haze | |
| Surface treatment | |
| Operating temperature | -20℃~ +70℃, ≤90%RH |
| Storage temperature | -30℃~ +80℃, ≤90%RH |
| Surface hardness | 6H |
| Finished static test | Air≥10KV, contact≥6KV |
| Applications | Industrial Control |
